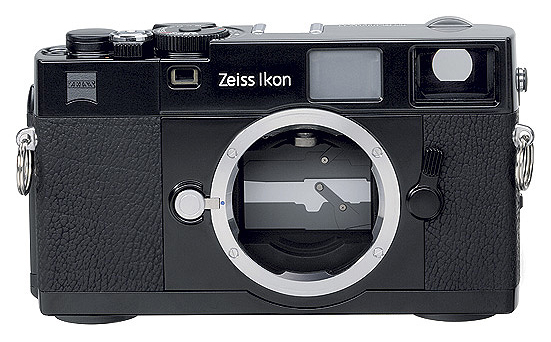

| Camera type |
Compact rangefinder system camera with focal
plane shutter and TTL light metering system |
| Film format |
24x36 mm on 35 mm film |
| Lenses |
Carl Zeiss T* ZM-mount lenses with focal length
15 to 85 mm. Can also use all other lens types with M bayonet |
| Viewfinder |
0.74X magnification. Bright range- and
viewfinder with bright line frames activated by used lens type.
Displayed frames 28/85 mm. 35 mm, 50 mm. Separate frame selector
lever for manual frame selection independent of mounted lens.
Automatic parallax compensation. Diopter correction lenses -4 to
+2 diopters. Standard setting at -1 diopter |
| Large base rangefinder |
Coincident-image rangefinder in the center of
the viewfinder image. Measurement base 75 mm (effective 55.9 mm) |
| Exposure metering |
TTL center-weighted metering at working
aperture. Metering range (at ISO100 and f/2) EV 0 to EV 19
(f/2–4s, f/16–1/2000 s) |
| Film speed range |
Manually set between ISO 25–3200 with 1/3
incremental f-stop |
| Exposure modes |
AE with aperture priority or manual. AE lock
option. Exposure compensation +/- 2 f-stops in 1/3 steps set at
shutter speed dial |
| Viewfinder display |
LED symbols for selected shutter speed along
left side of frame. Warnings for out of range shutter speeds and
low battery |
| Shutter |
Vertically moving electronically controlled
metal type. Shutter speed: speeds with 1/12 f-stop resolution
between 1/2000 s to 8 s in AE mode, full f-stops between 1/2000
s to 1 s in manual mode, B |
| Flash synch |
Synchronization at 1/125 s and longer shutter
speeds |
| Film transport |
Manual advance with quick lever. Rewinding with
rewind lever |
| Camera body |
One piece aluminium base structure. External
metal covers. Tripod thread inch in base plate |
| Batteries |
Two 1.5V cells type LR44 or SR44 |
| Dimensions |
138 x 78 x 32 mm (5.4”x3.1”x1.3”) |
| Weight |
500 g (1 lb 2 oz.) |
